3. Compare 2 videos with SSIM and PSNR metrics

The classic metrics PSNR (Peak Signal to Noise Ratio) and SSIM (Structural SIMilarity) are implemented in C for improved performance.

import math
import pathlib
import timeit

import cv2
import numpy as np
import tqdm

from cutcutcodec.core.io import read
from cutcutcodec.core.opti.parallel import starmap
from cutcutcodec.core.signal.metric import psnr as compute_psnr, ssim as compute_ssim  # the main functions

3.1. Preparing videos to be compared

Here we’ll compare the original video with a noisy version.

from cutcutcodec.core.analysis.stream.rate_video import optimal_rate_video
from cutcutcodec.core.analysis.stream.shape import optimal_shape_video
from cutcutcodec.utils import get_project_root

file = get_project_root().parent / "media" / "video" / "intro.webm"
stream_ref = read(file).out_select("video")[0]
rate = optimal_rate_video(stream_ref)
shape = optimal_shape_video(stream_ref)
print(f"{file} at {rate} fps, of size {shape[1]}x{shape[0]}")

/data/Documents/cutcutcodec_git/media/video/intro.webm at 30000/1001 fps, of size 1280x720

from cutcutcodec.core.filter.video.equation import FilterVideoEquation
from cutcutcodec.core.generation.video.noise import GeneratorVideoNoise

noise = GeneratorVideoNoise(0).out_streams[0]
stream_comp = FilterVideoEquation([stream_ref, noise], "(9*b0+b1)/10", "(9*g0+g1)/10", "(9*r0+r1)/10").out_streams[0]

3.2. Compare each frame

3.2.1. Convert all streams into YUV in the same colorspace

Image comparisons are always made in yuv, not rgb.

from cutcutcodec.core.filter.video.colorspace import FilterVideoColorspace
from cutcutcodec.config import Config  # to get the default used colorspace

dst_color = f"y'pbpr_{Config().target_trc}_{Config().target_prim}"
ref_yuv = FilterVideoColorspace([stream_ref], dst=dst_color).out_streams[0]
comp_yuv = FilterVideoColorspace([stream_comp], dst=dst_color).out_streams[0]

def compare(stream1, stream2, time, shape):
    """Compare 2 images."""
    frame1, frame2 = stream1.snapshot(time, shape), stream2.snapshot(time, shape)
    frame1, frame2 = frame1.numpy(force=True), frame2.numpy(force=True)
    psnr = compute_psnr(frame1, frame2, weights=(6, 1, 1))  # factor 6 on y
    ssim = compute_ssim(frame1, frame2, weights=(6, 1, 1), data_range=1.0)
    return psnr, ssim

times = np.arange(0, ref_yuv.duration, 1/rate).tolist()
all_psnr, all_ssim = zip(*starmap(compare, ((ref_yuv, comp_yuv, t, shape) for t in tqdm.tqdm(times))))

100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 294/294 [00:46<00:00,  6.31it/s]

import matplotlib.pyplot as plt

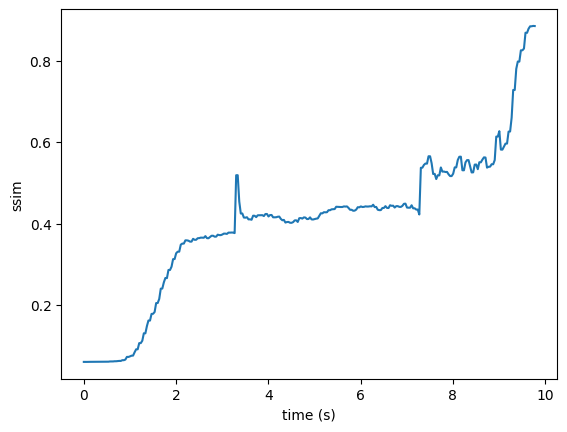

plt.plot(times, all_ssim)
plt.xlabel("time (s)")
plt.ylabel("ssim")
plt.show()

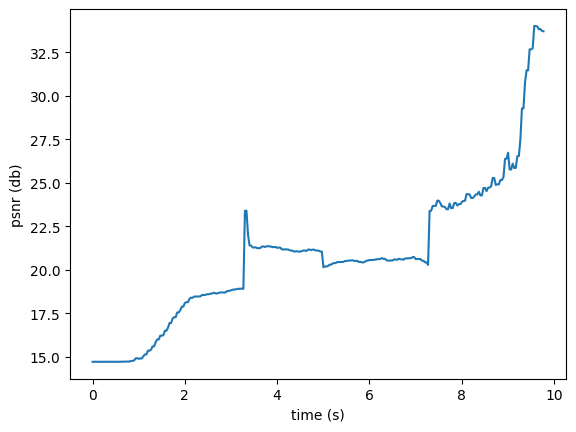

plt.plot(times, all_psnr)
plt.xlabel("time (s)")
plt.ylabel("psnr (db)")
plt.show()

3.3. Compare performances on syntetic data

# Functions as implemented in classical libraries.

def naive_psnr(im1: np.ndarray, im2: np.ndarray, weights = None) -> float:
    """Compute the psnr with numpy."""
    if weights is None:
      weights = [1.0 for _ in range(im1.shape[2])]
    layers_mse = ((im1 - im2)**2).mean(axis=(0, 1)).tolist()
    tot = sum(weights)
    mse = sum(l*w/tot for w, l in zip(weights, layers_mse))
    return -10.0*math.log10(mse) if mse > 1e-10 else 100.0

def naive_ssim(
  im1: np.ndarray, im2: np.ndarray, data_range : float = 1.0, weights = None, sigma: float = 1.5
) -> float:
    """Compute the ssim with numpy and cv2."""
    # get gaussian window
    r = int(3.5 * sigma + 0.5)  # same as skimage.metrics.structural_similarity
    gauss = np.exp(-(np.arange(-r, r+1)**2) / (2.0 * sigma**2))
    gauss_i, gauss_j = np.meshgrid(gauss, gauss, indexing="ij")
    gauss = gauss_i * gauss_j
    gauss /= gauss.sum()
    # compute statistics for all patches
    mu1 = cv2.filter2D(im1, ddepth=-1, kernel=gauss)
    mu2 = cv2.filter2D(im2, ddepth=-1, kernel=gauss)
    mu11, mu22, mu12 = mu1 * mu1, mu2 * mu2, mu1 * mu2
    s11 = cv2.filter2D(im1*im1, ddepth=-1, kernel=gauss) - mu11
    s22 = cv2.filter2D(im2*im2, ddepth=-1, kernel=gauss) - mu22
    s12 = cv2.filter2D(im1*im2, ddepth=-1, kernel=gauss) - mu12
    # crop patches
    mu11, mu22, mu12 = mu11[r:-r, r:-r], mu22[r:-r, r:-r], mu12[r:-r, r:-r]
    s11, s22, s12 = s11[r:-r, r:-r], s22[r:-r, r:-r], s12[r:-r, r:-r]
    # ssim formula
    c1, c2 = (0.01 * data_range)**2, (0.03 * data_range)**2
    ssim = ((2.0*mu12 + c1) * (2.0*s12 + c2)) / ((mu11 + mu22 + c1) * (s11 + s22 + c2))
    # average
    if weights is None:
      weights = [1.0 for _ in range(im1.shape[2])]
    weights = np.asarray(weights, dtype=im1.dtype)
    return float((ssim.mean(axis=(0, 1)) * weights).sum() / weights.sum())

# Create syntetic 4k images.

shape = (2160, 3840, 3)  # 4k
# shape = (1080, 1920, 3)  # full hd
im1 = np.random.random((2160, 3840, 3))
im2 = 0.8*im1 + 0.2*np.random.random((2160, 3840, 3))
im1, im2 = im1.astype(np.float32), im2.astype(np.float32)

time_naive_psnr = min(timeit.repeat(lambda: naive_psnr(im1, im2), repeat=5, number=10)) / 10
time_c_psnr = min(timeit.repeat(lambda: compute_psnr(im1, im2), repeat=5, number=10)) / 10
print(f"PSNR: {1000*time_naive_psnr:.1f}ms vs {1000*time_c_psnr:.1f}ms")

PSNR: 120.8ms vs 4.9ms

time_naive_ssim = min(timeit.repeat(lambda: naive_ssim(im1, im2, data_range=1.0), repeat=3, number=10)) / 10
time_c_ssim = min(timeit.repeat(lambda: compute_ssim(im1, im2, data_range=1.0), repeat=3, number=10)) / 10
print(f"SSIM: {1000*time_naive_ssim:.1f}ms vs {1000*time_c_ssim:.1f}ms")

SSIM: 1111.5ms vs 502.3ms
