3. A zoom animation of the mandelbrot function

The fractal is defined by the folowing equation: \(z_0 = 0\) and \(z_{n+1} = z_n^2 + c\)

import matplotlib.pyplot as plt
import sympy
import torch

import cutcutcodec

3.1. Define the complex positions

duration = 10  # video duration
ratio = f"(t/{duration})"
ratio_exp = f"(exp(-1.2*{ratio})-1)/(exp(-1.2)-1)"
bounds = {  # more symbols available in cutcutcodec.core.generation.video.fractal.geometry
    "i_center": f"0.34580*{ratio} + 0*(1-{ratio})",  # from y=0 to y=0.34580
    "j_center": f"0.40253*{ratio} + -1/4*(1-{ratio})",  # from x=-1/4 to x=0.40253
    "i_size": f"0.001*{ratio_exp} + 2*(1-{ratio_exp})",  # y zoom factor
    "j_size": f"3/2 * (0.001*{ratio_exp} + 2*(1-{ratio_exp}))",  # x zoom factor
}
iterations = f"1000*{ratio} + 100*(1-{ratio})"  # from 100 to 1000

gray_fractal = cutcutcodec.generation.GeneratorVideoMandelbrot(bounds, iterations)

3.2. Look Up Table (LUT)

The output of a GeneratorVideoMandelbrot is a grayscale video stream, you can define a function to create 3 colors from a single gray.

# create lut
red = "min(1, max(0, max(0,3/2-abs(7*(g0-(3/14))))+max(0,1-abs(7*(g0-(6/7))))))"
green = "min(1, max(0, 2-abs(7*(g0-(3/7)))))"
blue = "min(1, max(0, 2-abs(7*(g0-(5/7)))))"
rgb_fractal = gray_fractal.apply_video_equation(red, green, blue)
(rgb_stream,) = rgb_fractal.out_streams

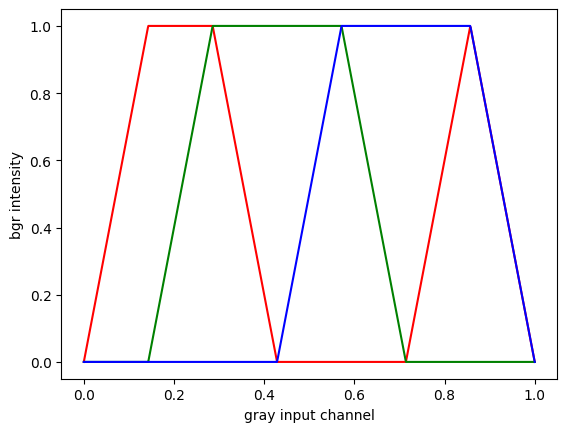

# display gray to bgr function
func = sympy.lambdify(["g0"], rgb_stream.node.colors, modules="math")
gray = torch.linspace(0, 1, 1000).tolist()
lut = [func(g) for g in gray]
plt.xlabel("gray input channel")
plt.ylabel("bgr intensity")
plt.plot(gray, [r for r, _, _ in lut], color="red")
plt.plot(gray, [g for _, g, _ in lut], color="green")
plt.plot(gray, [b for _, _, b in lut], color="blue")
plt.show()

3.3. Write the result

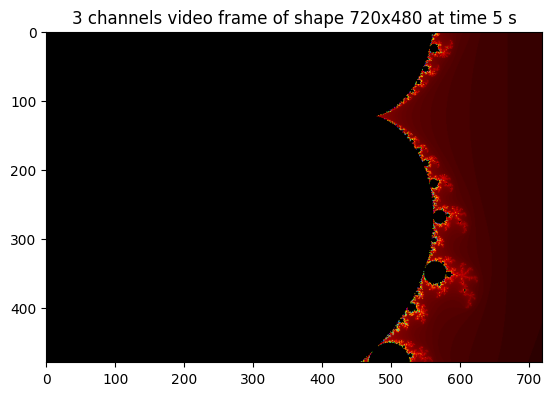

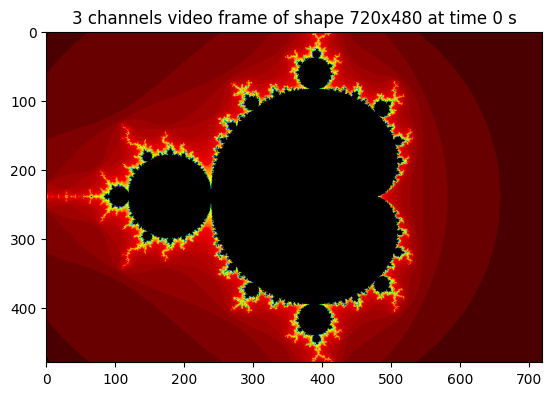

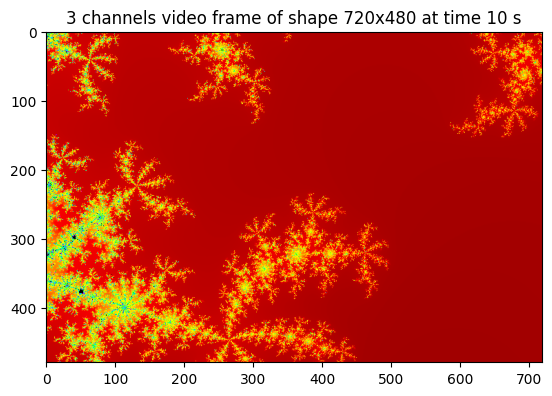

# some snapshot
srgb_stream = rgb_stream.apply_video_colorspace(cutcutcodec.Colorspace.from_default_target_rgb())  # standard rgb conversion
for time in torch.linspace(0, duration, 3).tolist():
    frame = srgb_stream.snapshot(time, (480, 720))
    plt.imshow(frame)
    plt.title(f"{frame.channels} channels video frame of shape {frame.width}x{frame.height} at time {frame.time} s")
    plt.show()

# write outputfile with low compression (high quality)
cliped_rgb_fractal = rgb_fractal.apply_video_subclip(0, duration)
streams_settings = [
    {"encodec": "libx264", "rate": 30, "shape": (480, 720), "options": {"crf": "23", "preset": "ultrafast"}},
]
cutcutcodec.write(cliped_rgb_fractal.out_streams, "/tmp/mandelbrot.mp4", streams_settings=streams_settings)

Encoding mandelbrot.mp4: 100%|██████████████████████████████████████| 10.00s/10.00s [00:18<00:00]
